Disassembly of the Arri Prism and the Pivot-Stop

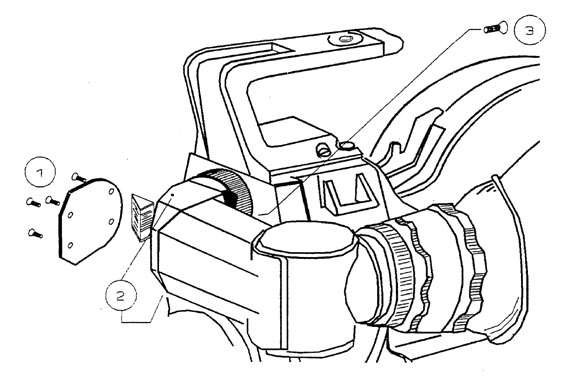

1. Remove cover of right angle prism housing. (Save the screws for assembly later on.)

2. Remove set screws, which sandwich the right angle prism. Remove prism with phenolic spacers. Save all these items for in case you wanted to reverse the camera to its original state.

3. Remove the one screw of the bracket which limits the pivot of the viewing system. (Save the screw for assembly later on.)
