Attachment of Prism-Housing

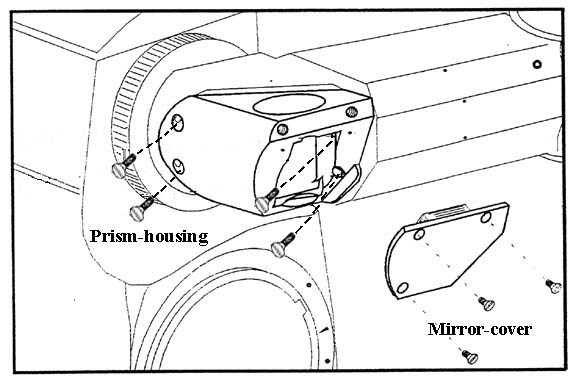

Before attaching the prism-housing, make sure all the optics are squeaky clean, including the cube-beamsplitter and the mirror.

The mirror-cover has to be detached from the prism-housing in order to insert the screws (use the metric screws Ml.4 you saved, when detaching the little Arri logo-plate.)to the prism-housing then fasten that onto the SR-viewing system where the right angle prism used to be.

Now you can attach the mirror-cover to the prism-housing. (1-72 flatheads)
