Attachment of Optical Housing to the Viewing System

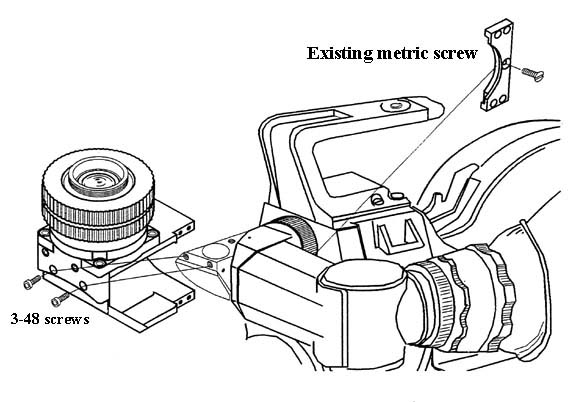

1. Attach the clamping-bracket to viewing system first with the M2.6 flathead screw you saved from before. 2. Now slip over the main-housing from the left side viewing the camera from the front.

3. Insert the two 3/48 allen cap screws first and attach the main-housing to the prismhousing.

4. Use the four 2/56 allen cap screws to attach the main-housing to the clampingbracket.
