Adjustments

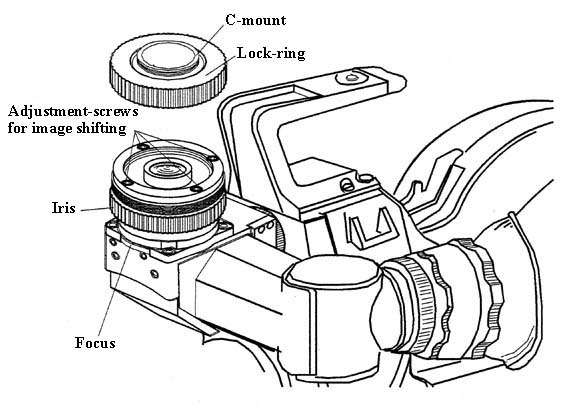

1. For shifting adjustments, unscrew the lockring and C-mount from the assembly. Attach those two items to your 1/2" CCD video camera you choose to use.

Loosen the adjustment screws, not totally loose, just enough for sliding the stainless steel ring with some resistance. Place the video camera onto the tap first without tightening the lockring onto the tap. Turn on the video camera and slide the camera so it's centered on the monitor. Take off the camera and tighten the screws (1/72 allen cap screws).

2. There is an iris adjustment.

3. For focus, use a ball-point pen or something similar to that.
